JCH is the leading manufacturer of air conditioners worldwide. It started up in 1910 as a repair shop for electronic equipment and, at present, has established itself as one of the most technologically advanced companies in the sector.
The company is committed to improving the well-being of its community through its high-quality products. In this respect, its involvement in environmental protection stands out, with them developing energy efficient technology and promoting reuse and recycling.
JCH needed a solution to house the smaller products in its component warehouse ─located next to its Barcelona production centre─, as well as a system to prepare orders as quickly as possible.

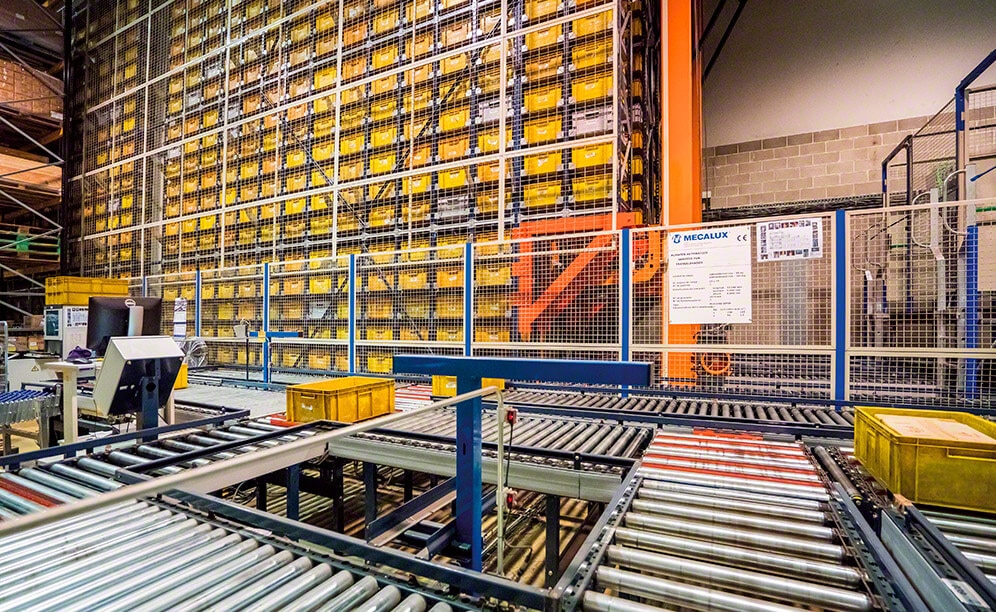

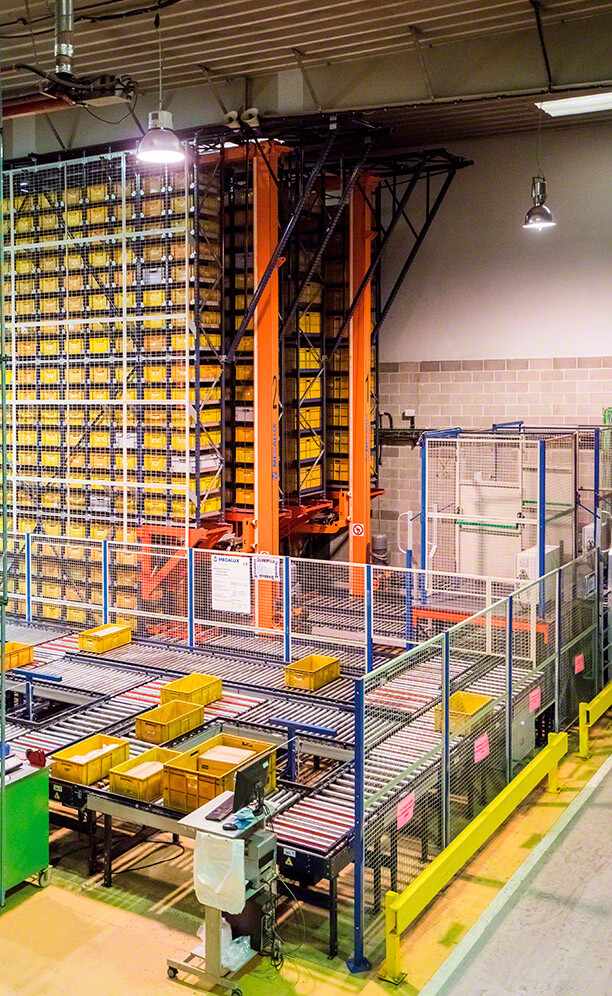

Keeping JCH’s requirements in mind, Mecalux installed an automated warehouse for boxes where two different models co-exist: on one side, 800 x 600 x 420 mm boxes and, on the other, 600 x 400 x 240 mm ones. The miniload installation makes full use of the available area to top out storage capacity, in addition to being an automated system that provides streamlined picking.

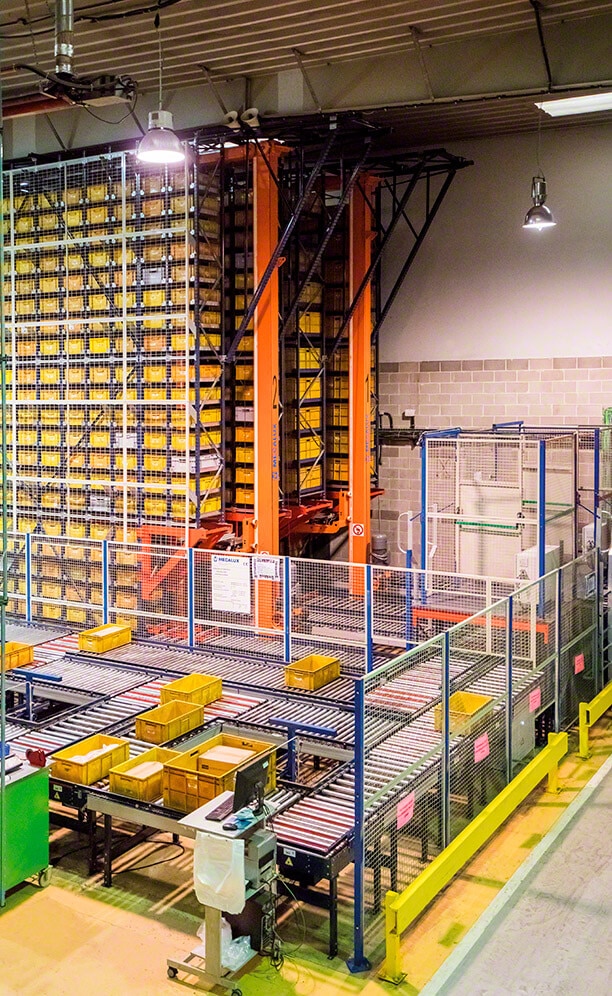

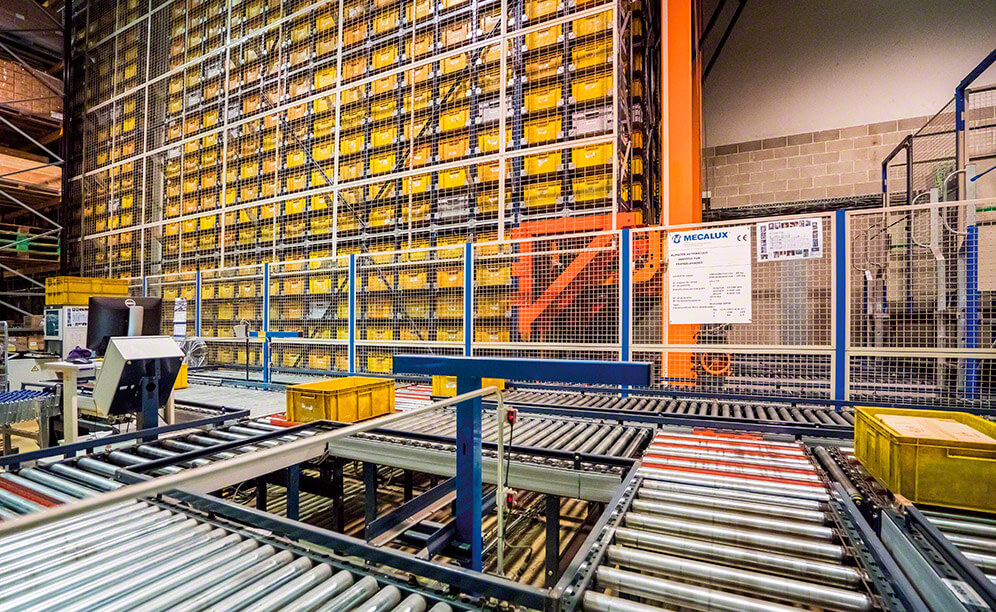

At the front of the warehouse, there is a conveyor circuit that connects the storage aisles to the three picking stations. Both conveyors and picking stations are specifically designed to operate with the two different box models.

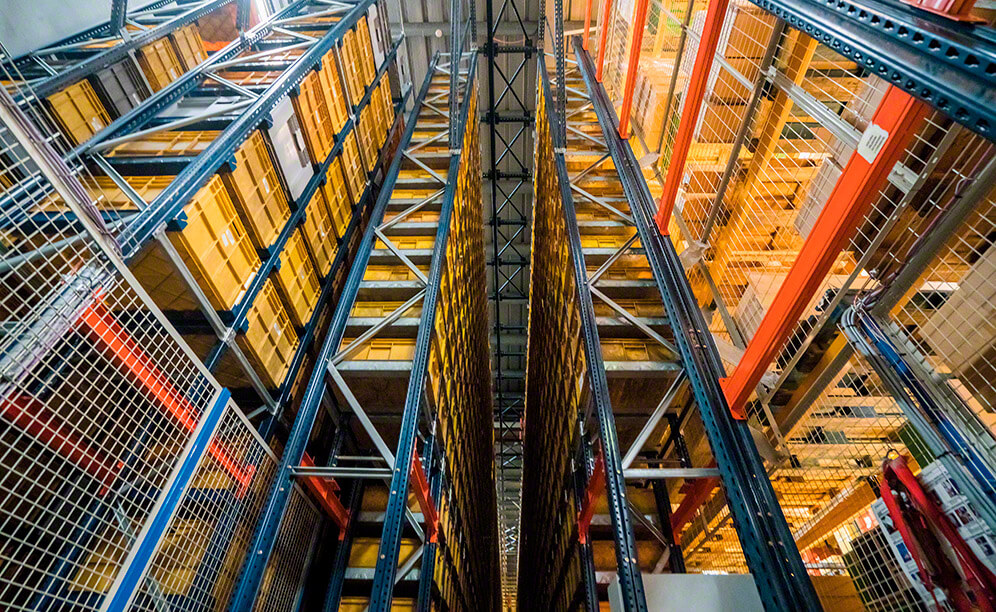

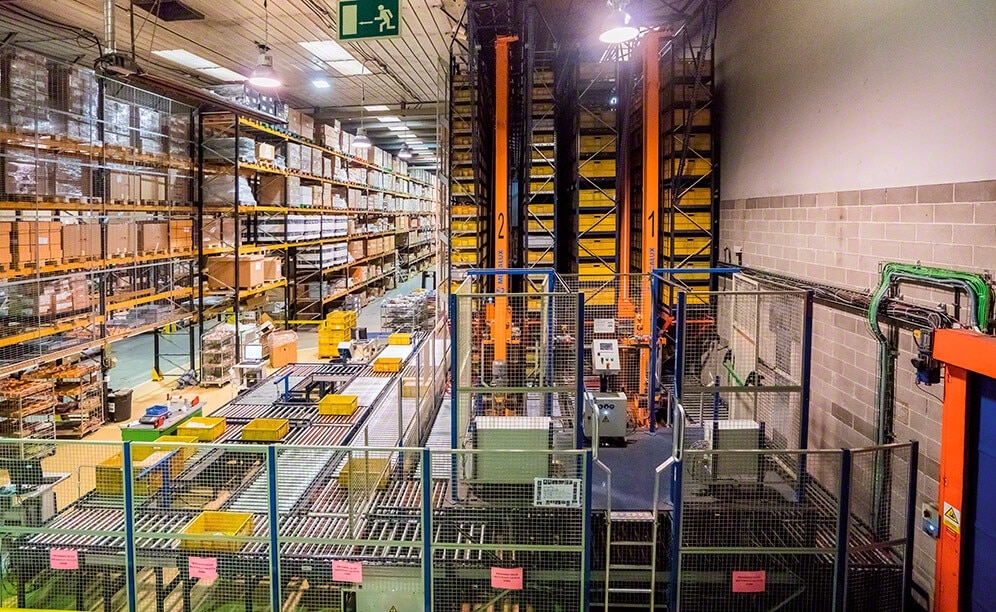

It comprises two aisles with single-depth racks on both sides that are 34 m long and 8 m high. Larger boxes are deposited in one of the aisles that is 14 levels high, and smaller ones in the other that has 21 levels.

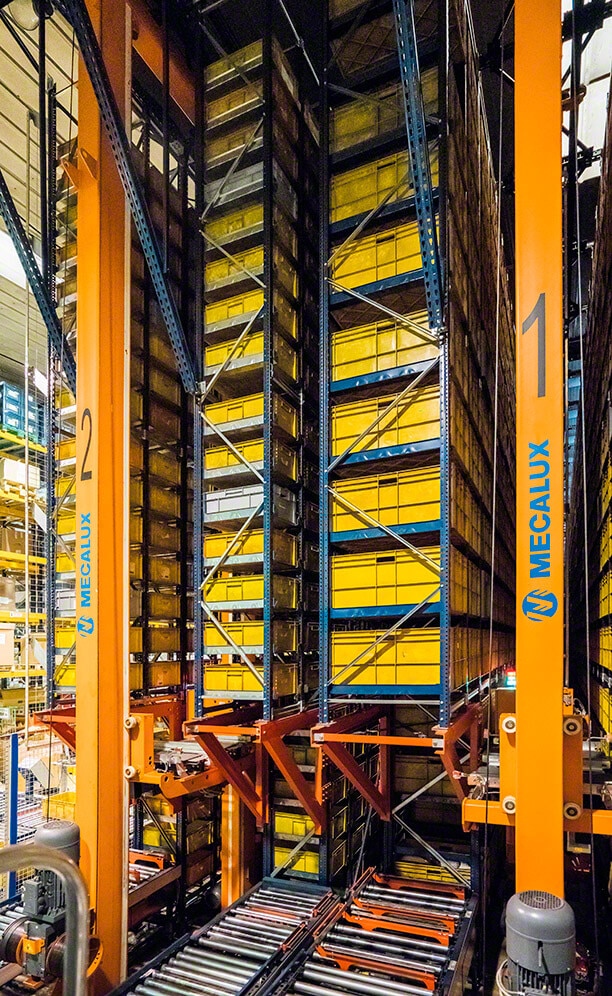

In each one of the aisles, a twin-mast miniload stacker crane circulates, whose task is to carry out the inputs and outputs of the goods automatically. These machines operate at a travel speed of 250 m/min and 90 m/min when elevated.
Both miniload installations incorporate a double extraction system capable of handling two boxes at a time. Each stacker crane is adapted to the box sizes it operates with: one of them can move two 50 kg boxes and the other, two weighing 100 kg.

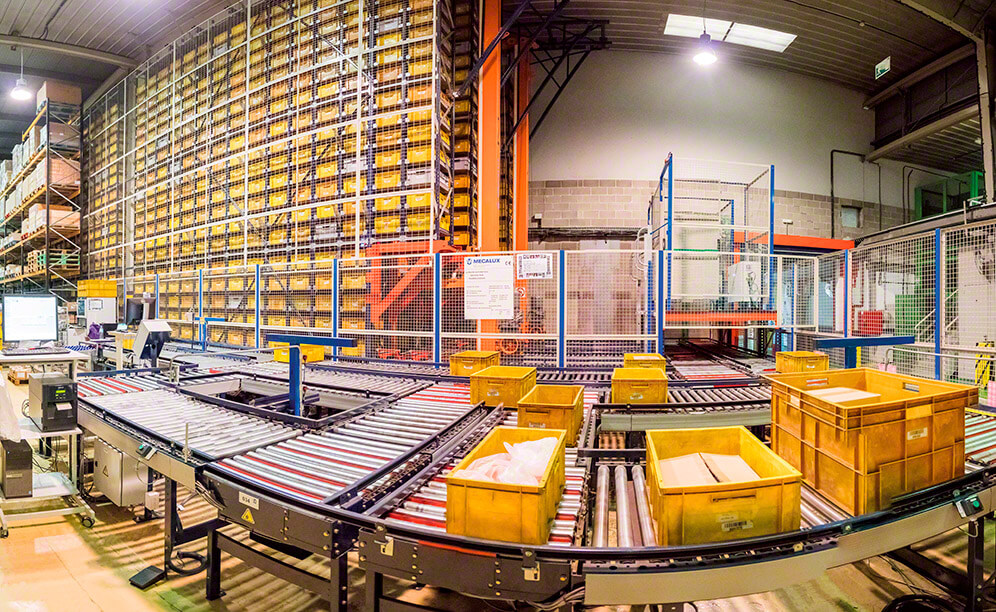

In front of the miniload warehouse, a roller conveyor circuit has been installed, moving at a speed of 25 m/min. Its function is to displace the merchandise from the warehouse to the picking stations. The recirculation of the boxes is facilitated by its double circuit design.

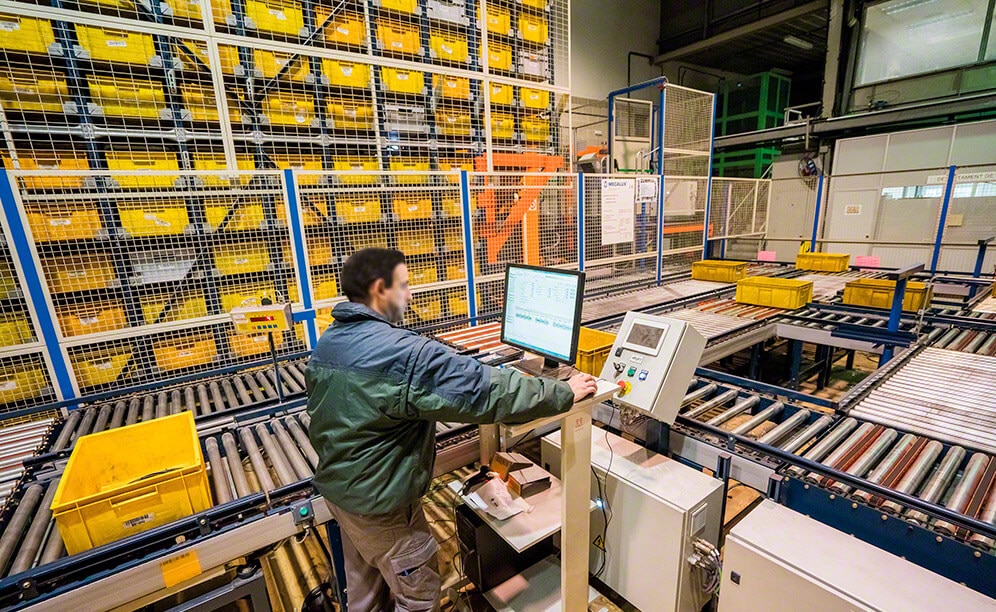

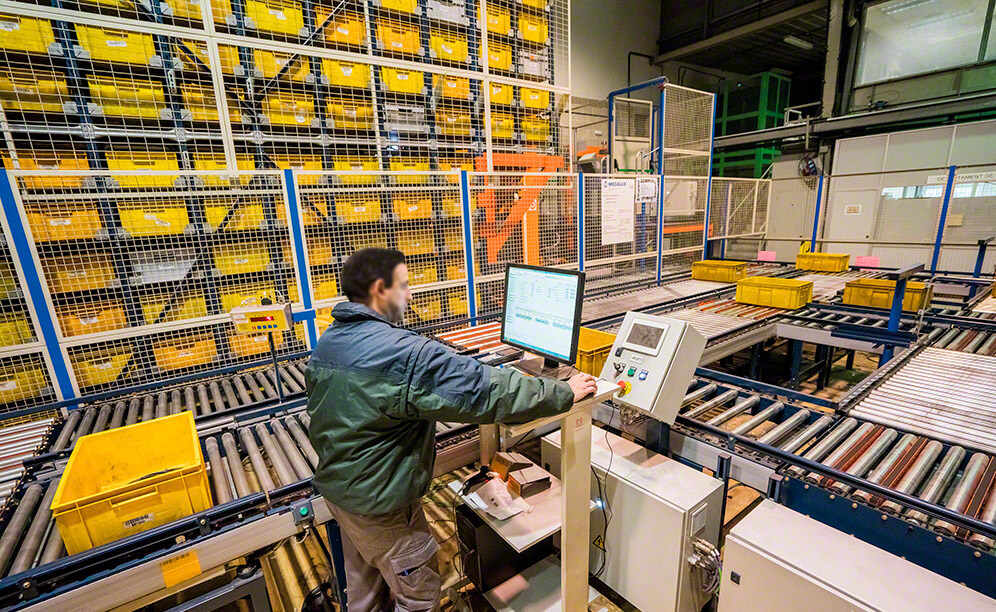

Two U-shaped picking stations are set up perpendicular to the main circuit. Picking is done via the "product-to-person" principle, in other words, the stacker cranes provide the merchandise to the operators automatically. The operators then extract the items indicated on a screen by the system and deposit them into the corresponding order.

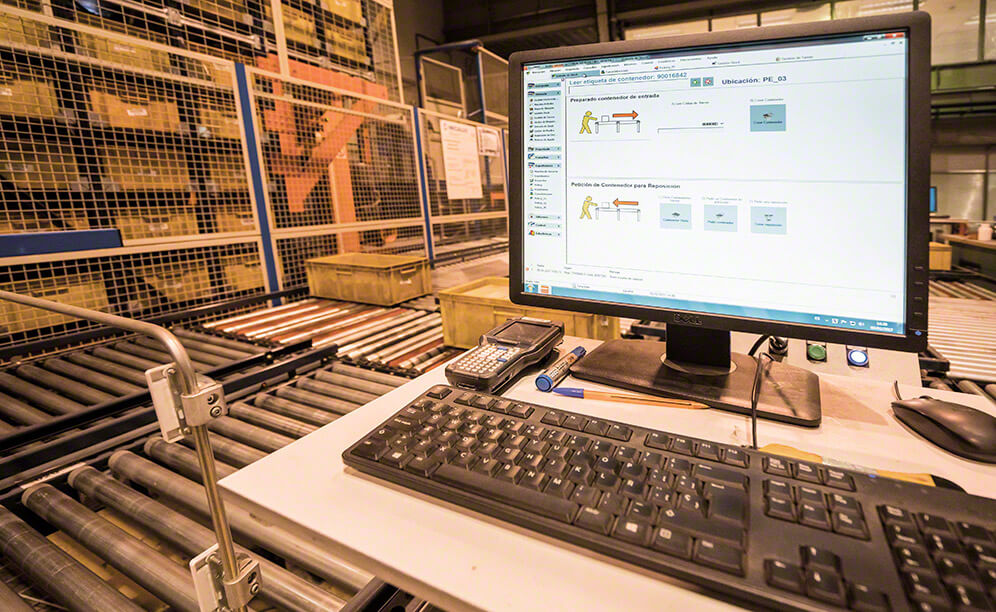

On one of the side of the warehouse, there is a third picking station that also carries out replenishment tasks. It has the necessary equipment to do the job, such as a scale, a scanner and a computer.
Easy WMS and Galileo
The JCH miniload warehouse is managed by the Easy WMS warehouse management software by Mecalux, which controls and coordinates its operation at all times.
It is a very efficient system, which performs various functions, among which is the assigning of locations and storing of boxes, removal of the goods, and order picking.
Moreover, the Mecalux Galileo control module is responsible for directing the manoeuvres performed by the moving warehouse devices, such as the two miniload stacker cranes and the conveyor circuit.
Advantages for JCH
- High storage capacity: the automated miniload warehouse reaches a 4,067 box capacity.
- Boosted picking speeds: the automated miniload warehouse and the picking circuit optimise the movements of the operators during picking tasks.
- Smart management: the Mecalux Easy WMS warehouse management software and the Galileo control module are capable of organising the processes and operations carried out in the warehouse.
Products used in this project
|Storage capacity:||4,067 boxes|
|Box sizes:||800 x 600 x 420 mm / 600 x 400 x 240 mm|
|Max. weight per box:||100 and 50 kg|
|Racking height:||8 m|
|Racking length:||34 m|
