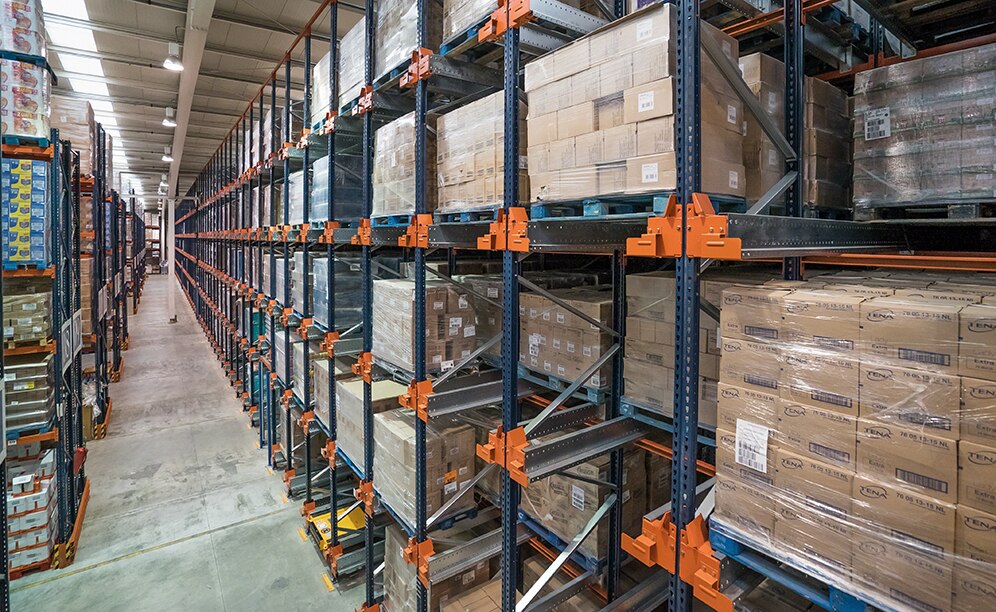

Mecalux has supplied a high-density block of racks served by the Pallet Shuttle, consisting of five levels that are 8.5 m high
How are 1,000 more pallet housed in the same storage area?
Marvimundo achieves 1,000 additional pallets with the high-density Pallet Shuttle system
Mecalux has installed the Pallet Shuttle system in the warehouse Marvimundo has in Murcia to increase the storage capacity by more than 1,000 pallets in the same surface area and space available. That way the company maintains its commitment to innovation and constant improvement in its production processes to cope with the growth achieved in recent years.
Marvimundo warehouse in Murcia, Spain Storage capacity: +1,900 pallets (an increase of 1,000 pallets) Pallet size: 800 x 1,200 x 1,300 mm Max. pallet weight: 600 kg No. of channels: 277 Racking height: 8.5 m Racking length: 82.7 m Channel depth: 6 m No. of Pallet Shuttles: 2
- Download PDF
Marvimundo, founded in 1971 in Murcia, began focusing on the sale of plastics and drugstore goods, and subsequently developed new products and services to expand its market. At present, it has become one of the most prominent Spanish companies in the perfumery and personal hygiene sector.
The transformation of the warehouse
The company's warehouse was equipped with pallet racking, but the storage capacity was insufficient for its logistical needs. Increased sales forced them to reorganise the distribution and classify the goods in terms of turnover and consumption criterion.

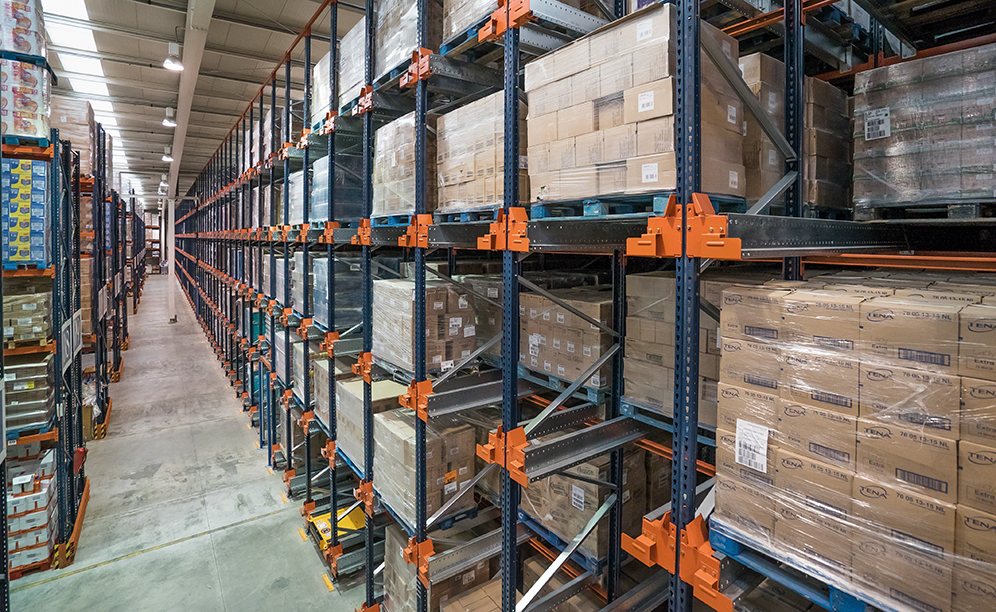

Marvimundo required a system that would enlarge the storage capacity and, in turn, offer speedy operations, similar to pallet racking, to deposit consumer products (type A). To achieve this, Mecalux has supplied a high-density block of 82.7 long racks served by the Pallet Shuttle, consisting of five levels that are 8.5 m high.
The semi-automatic Pallet Shuttle system optimises the storage capacity of the high-density racking and minimises operating times because operators do not enter the aisles to handle goods, it is the shuttle which carries out the movements autonomously.
Greater flexibility in operations

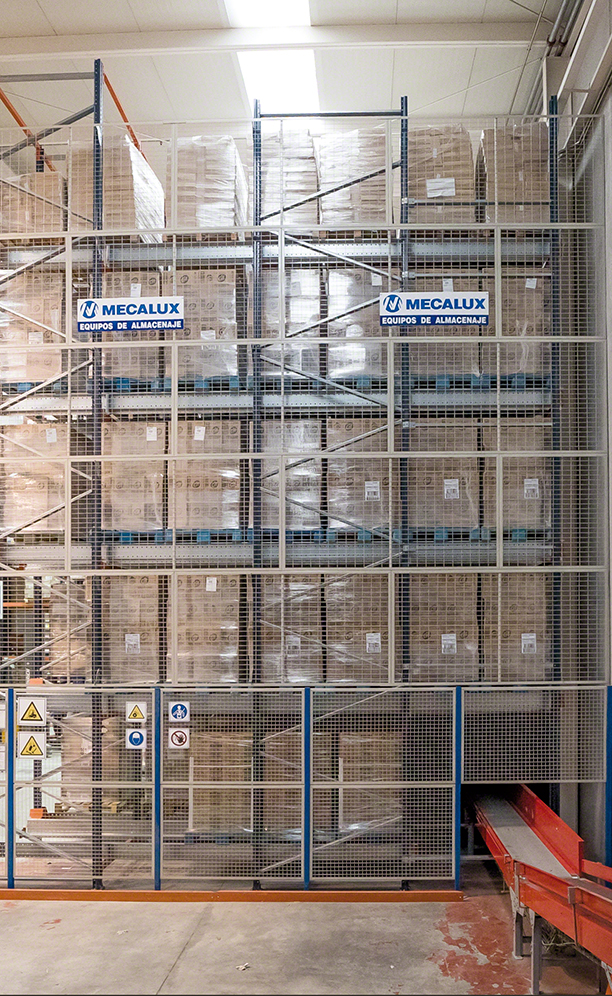

In the Marvimundo warehouse, a lot of picking is performed. That is why a specific area for this operation was set up on one side.
The Pallet Shuttle system, among high-density systems, is the best suited to the features of the Marvimundo installation since it allows the quick placement and extraction of pallets in order to send them to the order preparation area.

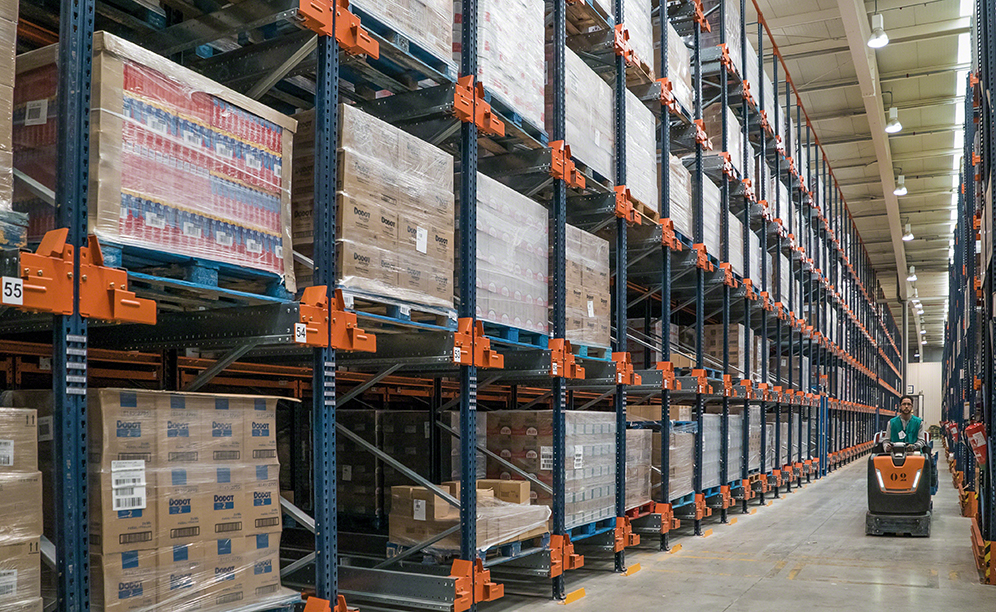

Its operation is very simple and requires minimal labour: operators assisted by reach trucks place the motorised shuttle into the channel, deposit the pallets in the first position of the racks and the Pallet Shuttle transfers them directly to the next free location autonomously. To remove the goods, the same operation is performed in reverse order.
Maximum system safety

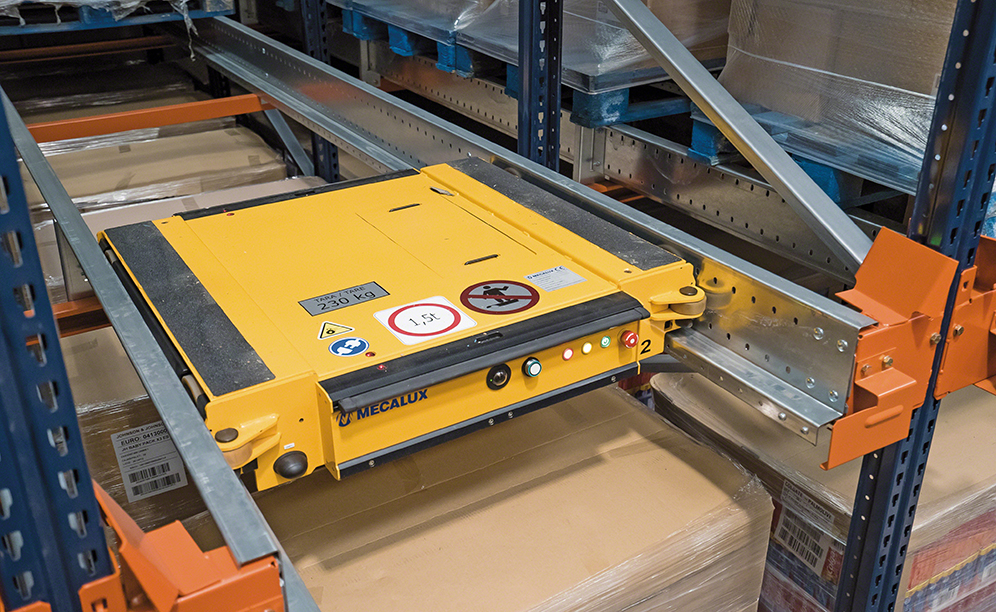

The shuttle is equipped with various electronic and mechanical components to ensure proper operation and that the movement inside the lanes occurs with the utmost safety.
It is also fitted with a bumper that prevents any trapping and crushing; emergency stops that cut power if necessary, as well as a locking system that improves contact of the shuttle with the forks of the forklift and eliminates the risk of falling. There are also ultrasonic sensors that locate the position of the pallets in the channels so that the Pallet Shuttle is correctly placed underneath to move them.

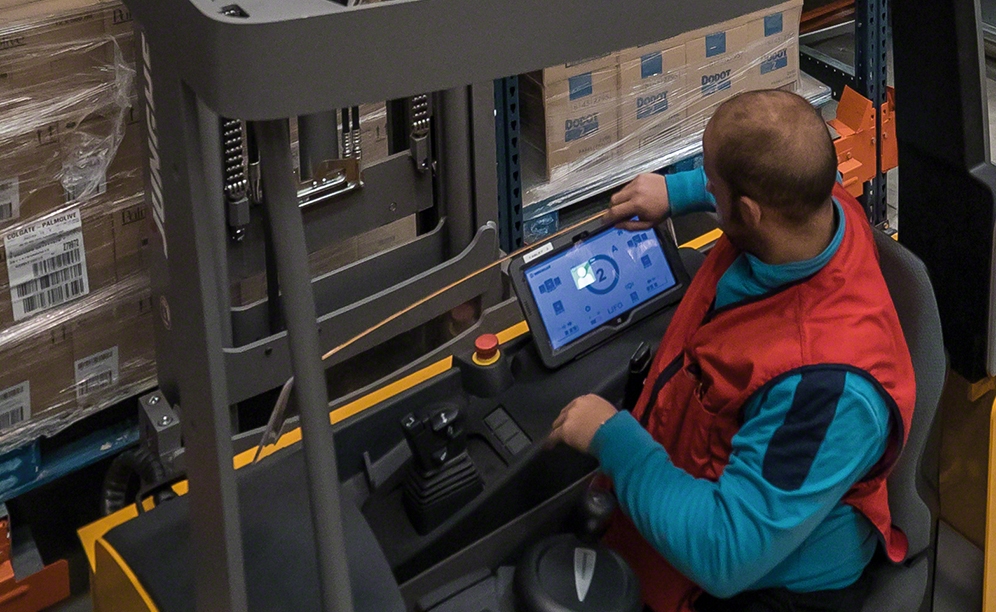

The Wi-Fi control tablet
Each tablet can operate any shuttle in the installation via Wi-Fi and through a very intuitive software that does not require specific training of the operators.
With tablets, operators can run many applications and functions, such as selecting the number of pallets to be extracted, taking an inventory of the number of pallets available, choosing the strategy (set the LIFO or FIFO method) and managing users and authorised personnel.
In the warehouse, there are replacement batteries to load into equipment while the Pallet Shuttle continues to work within the channels.

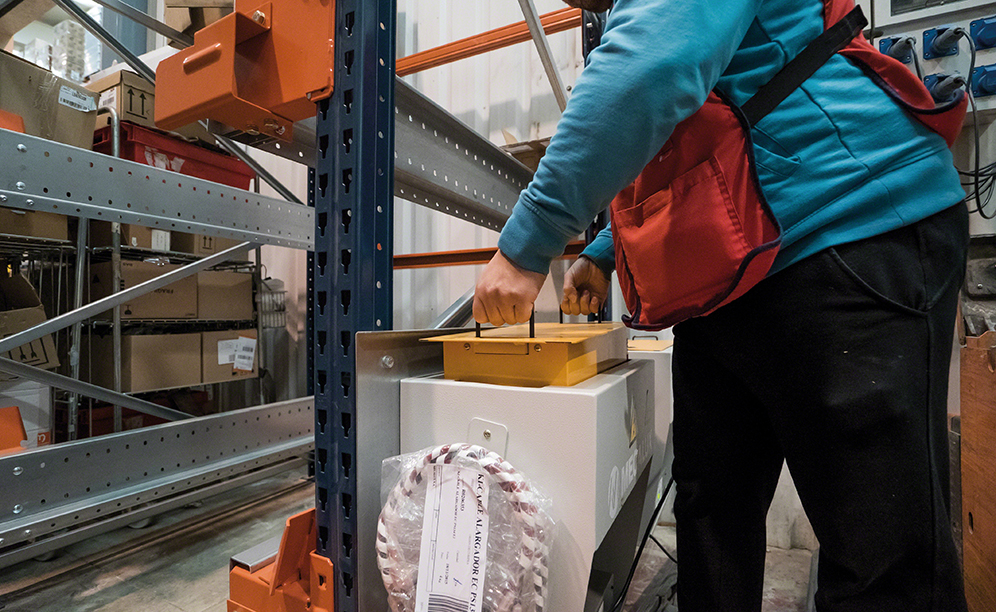

Batteries extracted from the shuttles are connected by simply fitting them into the charging stations set up in the warehouse. In addition, in the charging stations, there is also a separate cable that lets you charge the shuttle directly, without removing the battery.
Advantages for Marvimundo
- Increased storage capacity: 277 channels, each 6 m deep, provide a storage capacity of over 1,900 pallets, 1,000 more than with pallet racking.
- Speedy high-density system: among compact systems, the Pallet Shuttle is the most flexible to facilitate the introduction and removal of pallets in channels with minimal operator intervention.
- Classification by consumption: the warehouse is organised according to consumption criterion. Consumer products (type A) are deposited in the high-density racks served by the Pallet Shuttle.
|Marvimundo warehouse in Murcia, Spain|
|Storage capacity:||+1,900 pallets (an increase of 1,000 pallets)|
|Pallet size:||800 x 1,200 x 1,300 mm|
|Max. pallet weight:||600 kg|
|No. of channels:||277|
|Racking height:||8.5 m|
|Racking length:||82.7 m|
|Channel depth:||6 m|
|No. of Pallet Shuttles:||2|
