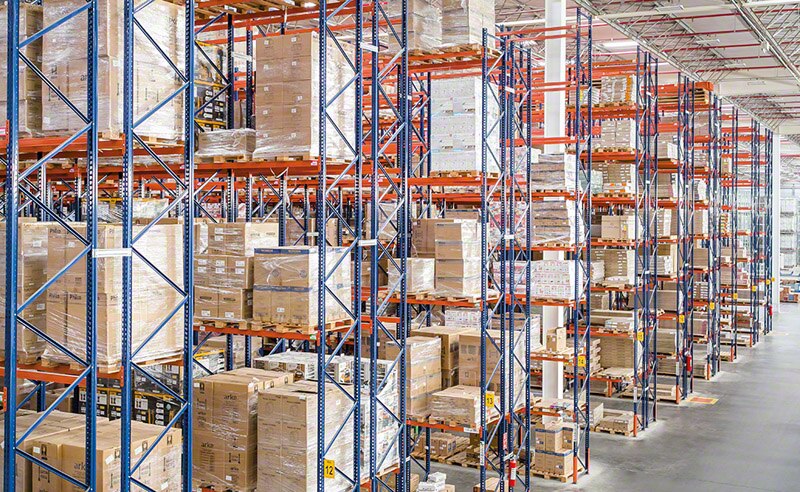

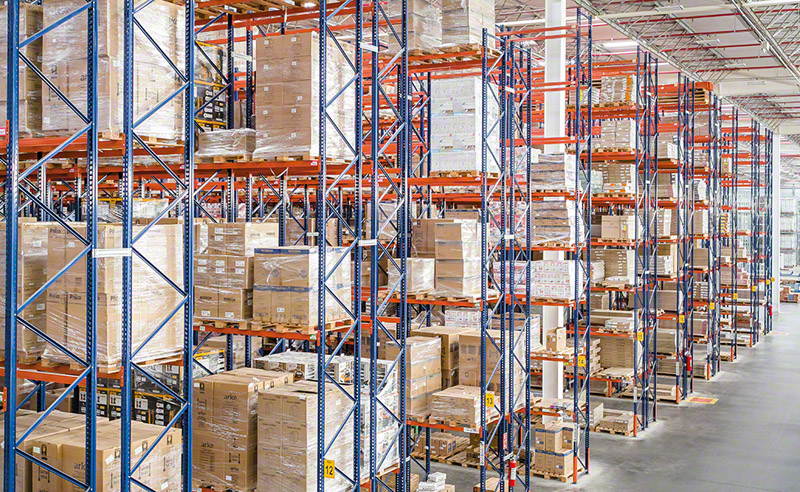

A huge variety of palletised products stored in pallet racks at Magazine Luiza

The Magazine Luiza installation can hold 15,300 pallets in a 7,050 m² surface

Magazine Luiza
Mecalux has set up pallet racking in the warehouse Magazine Luiza, an electronics company, owns and operates in the Brazilian city of Guarulhos. With this system, the company has attained a capacity to store more than 15,300 pallets.
A huge variety of palletised products stored in pallet racks at Magazine Luiza

About Magazine Luiza

Magazine Luiza, founded in 1957, is one of the largest retail sales companies in Brazil. With 814 storefronts spread throughout 16 Brazilian states, the business has a team of 21,000 employees trained to serve its 40 million customers.


Pallet racking

The Magazine Luiza warehouse includes 15 blocks of double-deep pallet racks that are 94 m long and 11.9 m high, letting more than 15,300 pallets of different sizes be housed. Overall, this set of racks fills a 7,050 m2 area.

This storage system is highly suited for storing the large variety of pallets that Magazine Luiza utilises. Likewise, the direct access to all the SKUs provides exceptional flexibility when managing goods and preparing orders.

Due to this large variety of pallets, the rack levels were adjusted to the type of goods being stored and to its operations. Picking is done directly off the pallet on the lower rack levels, leaving product reserves on upper levels. Operators run reach trucks to handle pallets on top levels.

Frontal rack uprights were reinforced to improve safety levels of the racks that coincide with the emergency exit aisle. This safety measure focuses on cutting down on possible buckling caused by blows from warehouse equipment during load handling operations.


Advantages for Magazine Luiza

  • High storage capacity: the Magazine Luiza installation can hold 15,300 pallets in a 7,050 m2 surface.
  • Diversification: the provided solution can store a huge variety of products of different sizes and weights.
  • Direct access to goods: the pallet racks offer direct access to the deposited SKUs, which facilitates stock management and picking tasks.

Products used in this project

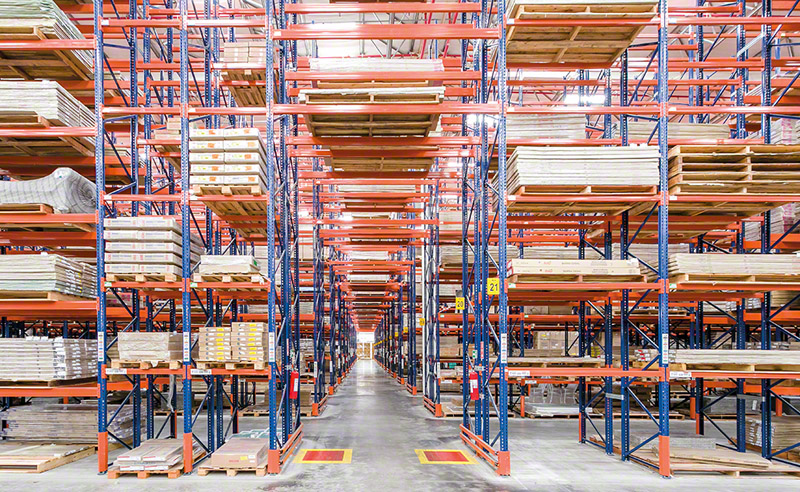

  • The Magazine Luiza warehouse includes 15 blocks of double-deep pallet racks letting more than 15,300 pallets
    The Magazine Luiza warehouse includes 15 blocks of double-deep pallet racks letting more than 15,300 pallets

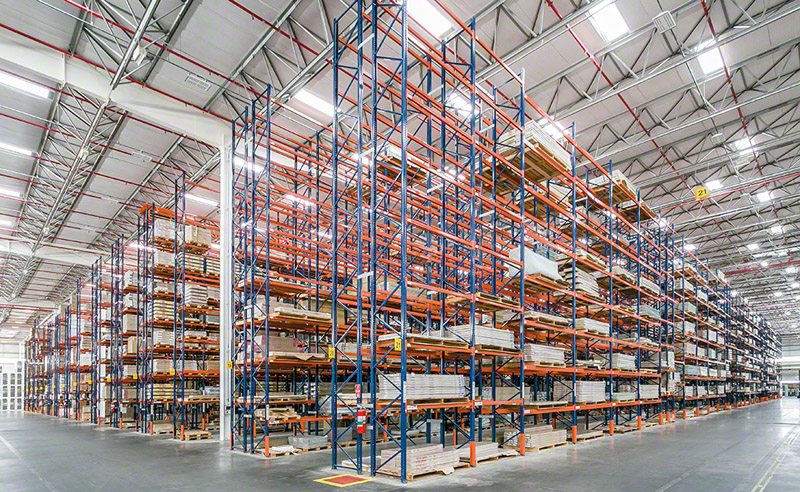

  • Pallet racks offer this business an extremely versatile solution that slots any type of unit load, with differing weights and volumes
    Pallet racks offer this business an extremely versatile solution that slots any type of unit load, with differing weights and volumes

Technical Specifications

The warehouse Magazine Luiza
Storage capacity: 15,381 pallets
Pallet size: 1,000 x 1,200 mm
Max. weight per pallet: 600 kg
Max. racking height: 11.9 m
